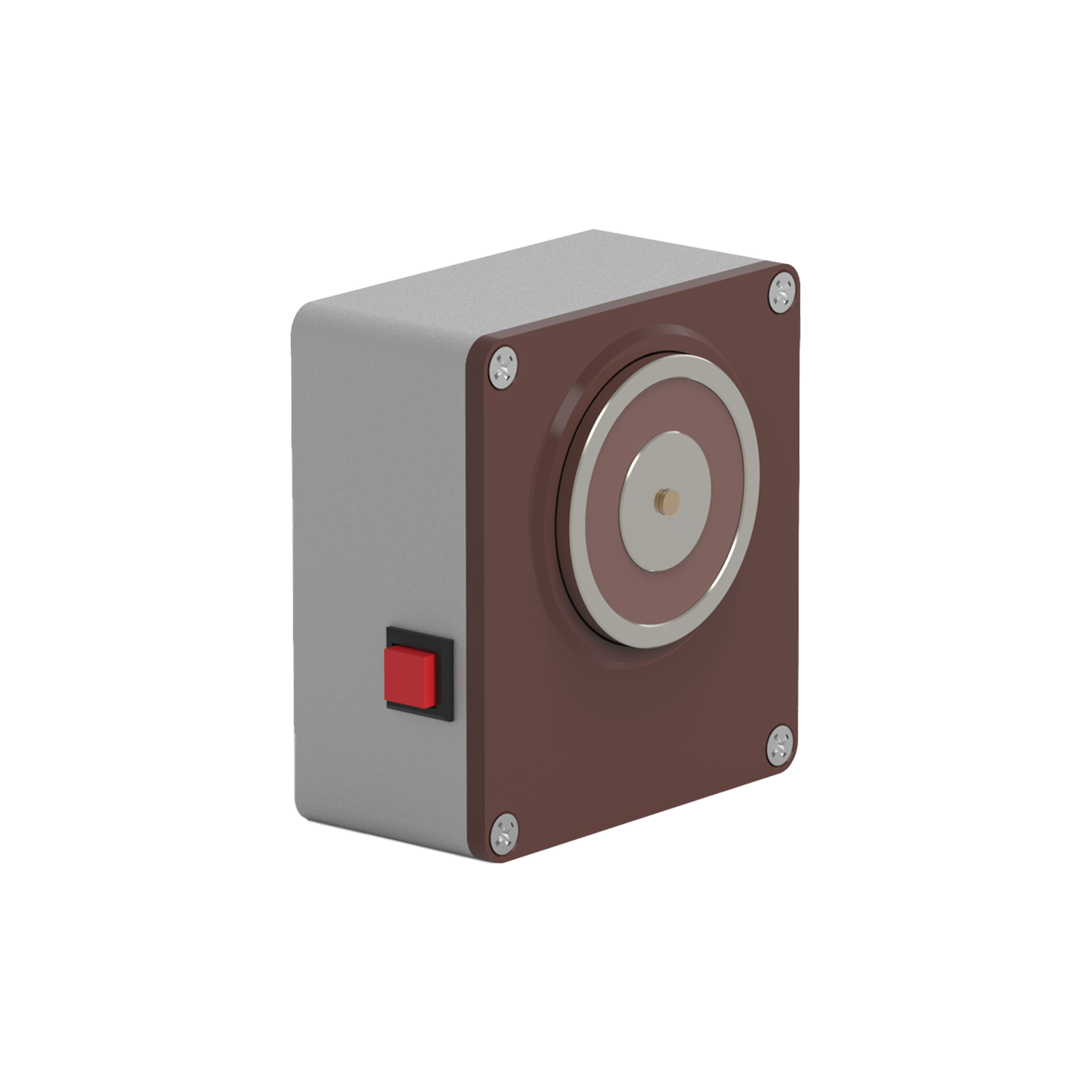

DHB Series DH Electromagnetic Lock surface mounted 600N
EAN: 8431922044452
GTIN: 8431922044452 Series DH
DHB
DHB Series DH Electromagnetic Lock surface mounted 600N
Technical Data
| Closing Force | 600 N |
| Installation Type | Surface Mounted |
| Colour | Inox |
| Suitable for Fire/Smoke Protection Doors | Fire/Smoke |
| Height (Z) | 93 mm |
| Width (X) | 83 mm |
| Depth (Y) | 42.5 mm |
Product Certificates
| Regulations | (UE) 305/2011 |
| Standards | EN 1155:1997 + A1:2002 + A2:2006 |
| CPR Certificate | 0370-CPR-1178 |
| Certification Authority | APPLUS 0370 |
| Classification | 387113 |
| EMC Directive | 2014/30/UE |
| RoHS Directive | 2011/65/UE |
| REACH Regulation | 1907/2006 |
Compatible Products
| Accessories | DH50, DHF30, DH60 |
Electrical Data (at 20°C)
| Nominal Voltage | 12/24V DC |
| Coil | W |
| Duty Cycle (%ED) | 100% ED |
| Connection Type | Power strip |
| Rated Operational Voltage Tolerance | +/- 10% |
| Power | 2 W |
| Transient Voltage Suppressor (TVS) | Yes |
Connection
Consumption Relation between Tension (Vin) and Consumption (A)
Direct Current (DC)
| Vin (DC) |
| ||
|---|---|---|---|
| 12 | 0.17 | ||
| 24 | 0.09 |
1 C2: Holding Consumption.
