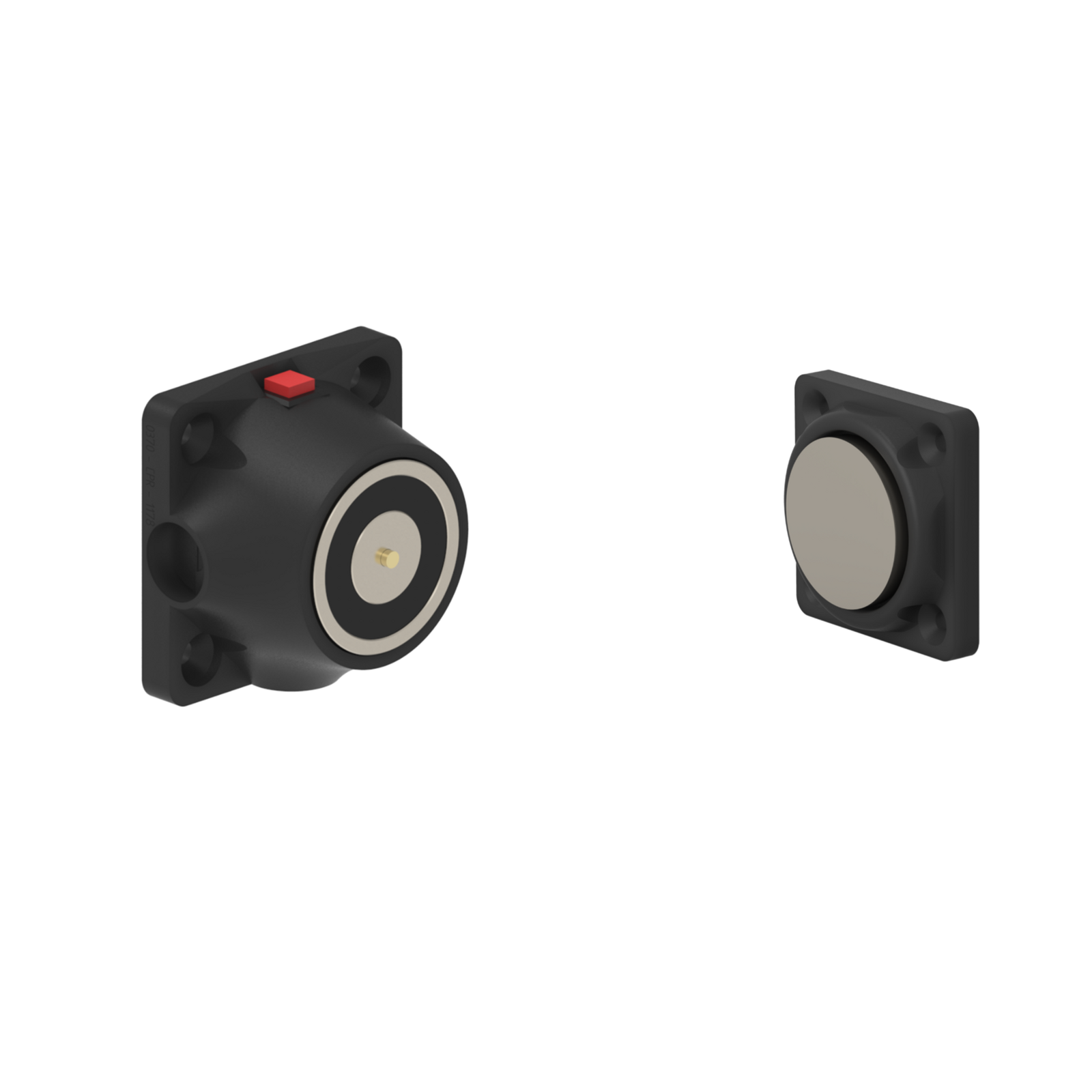

DHUMFKC3 Series DH Electromagnetic Lock recess and/or surface mounted 600N 24V DC Black with C3 counterplate

Download PDF

Technical Data

Closing Force600 N
Installation TypeRecess and/or surface mounted
ColourBlack
Counterplate ColourBlack
Suitable for Fire/Smoke Protection DoorsFire/Smoke
MeasurementsBlockCounterplate
Height (Z)80 mm80 mm
Width (X)80 mm80 mm
Depth (Y)46 mm23 mm

Product Certificates

Regulations(UE) 305/2011
StandardsEN 1155:1997 + A1:2002 + A2:2006
CPR Certificate0370-CPR-1178
Certification AuthorityAPPLUS 0370
Classification
387113
EMC Directive2014/30/UE
RoHS Directive2011/65/UE
REACH Regulation1907/2006

Compatible Products

DHE01, DHE02, DHF01, DHF30, DHF40, DHF10, DHF11, C1, C2, C3, C4, C5

Electrical Data (at 20°C)

Nominal Voltage24V DC
CoilF
Duty Cycle (%ED)100% ED
Connection TypePower strip
Rated Operational Voltage Tolerance+/- 10%
Power2.4 W

Connection

Connection DHUMFKC3

Consumption Relation between Tension (Vin) and Consumption (A)

Direct Current (DC)

Vin (DC)

Initial

C1(A)1

Holding

C2(A)2
12——
240.10.1
1 C1: Initial Consumption. 2 C2: Holding Consumption.
