GTIN: 8431922099506FD18WL
FD18WL Faceplate Long Diagonal Hole 250x25x3mm White engraved one side
Technical Data
| Principal Material | Metal |
| Colour | White |
| Compatible Series | 3,5,8 |
| Length | 250 mm |
| Width | 25 mm |
| Thickness | 3 mm |
| Door Opening Direction (DIN 107) | DIN R / DIN L |
| Window for deadbolt | Yes |
| Window Length | 73 mm |
| Window Width | 14 mm |
| Cover with latch guide | No |
| Fixing Holes | 2 diagonal holes |
| Strike Fixing Distance | 52.5 mm |
| Laser Engraving | One side |

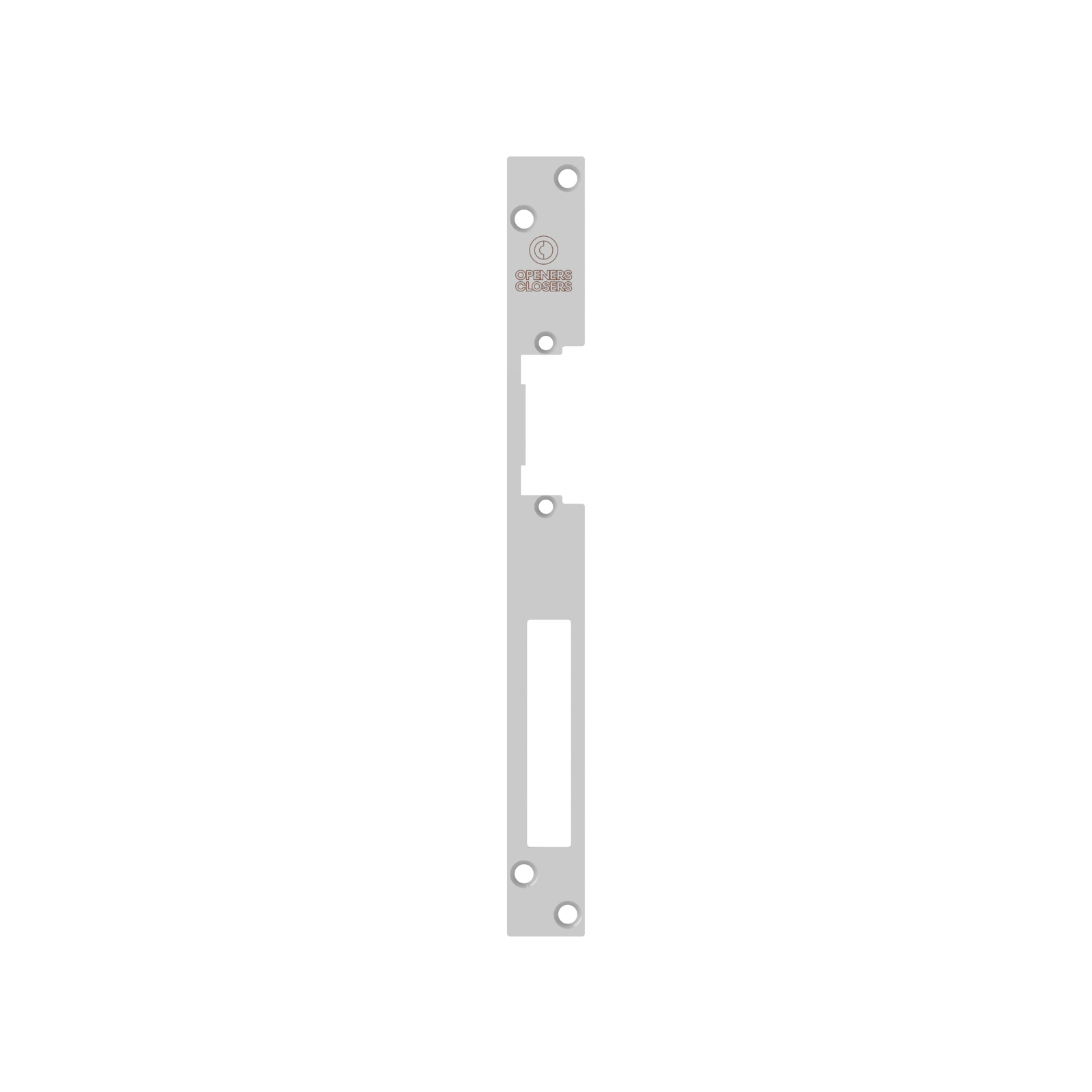

Product Diagram
