OC880

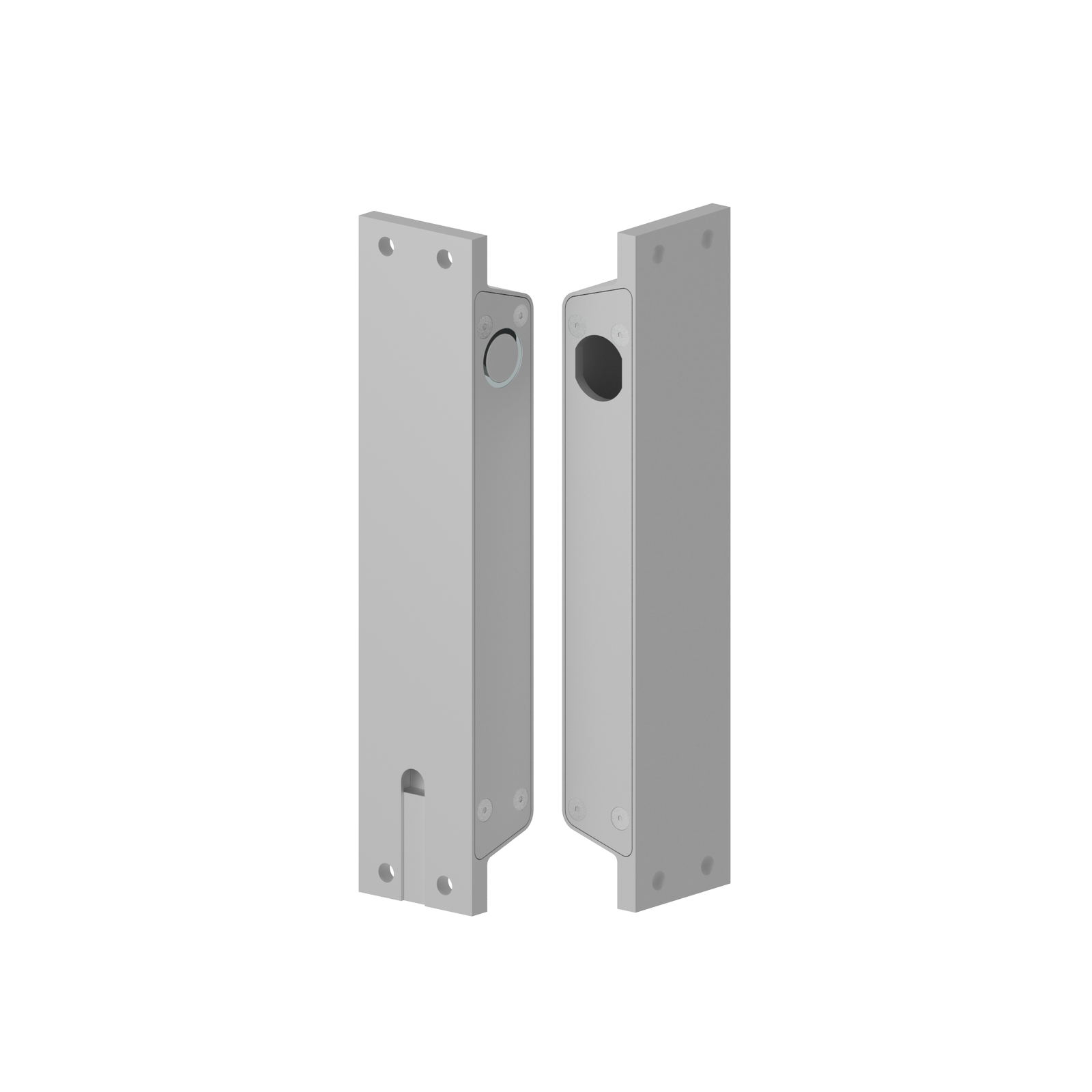

OC880 Series OC Electropiston Lock surface mounted 12V DC Fail-safe
Series OC
Technical Data
| Function | Fail-safe |
| Installation Type | Surface Mounted |
| Timer Delay | 0s/3s/6s/9s |
| Door Status | Yes |
| Bolt Status | Yes |
| Measurements | Block | Counterplate |
| Height (Z) | 175 mm | 175 mm |
| Width (X) | 37 mm | 24 mm |
| Depth (Y) | 24 mm | 37 mm |
Electrical Data (at 20°C)
| Nominal Voltage | 12V DC |
| Duty Cycle (%ED) | ED 100 % |
| Rated Operational Voltage Tolerance | ± 10 % |
| Power | 1.2 W |
Connection
Consumption Relation between Tension (Vin) and Consumption (A)
Direct Current (DC)
| Vin (DC) |
|
| |||||||
|---|---|---|---|---|---|---|---|---|---|
| 12 |
| 0.1 | |||||||
| 24 |
| — | |||||||
1 C0: Peak current. 2 C1: Initial Consumption. 3 C2: Holding Consumption.
