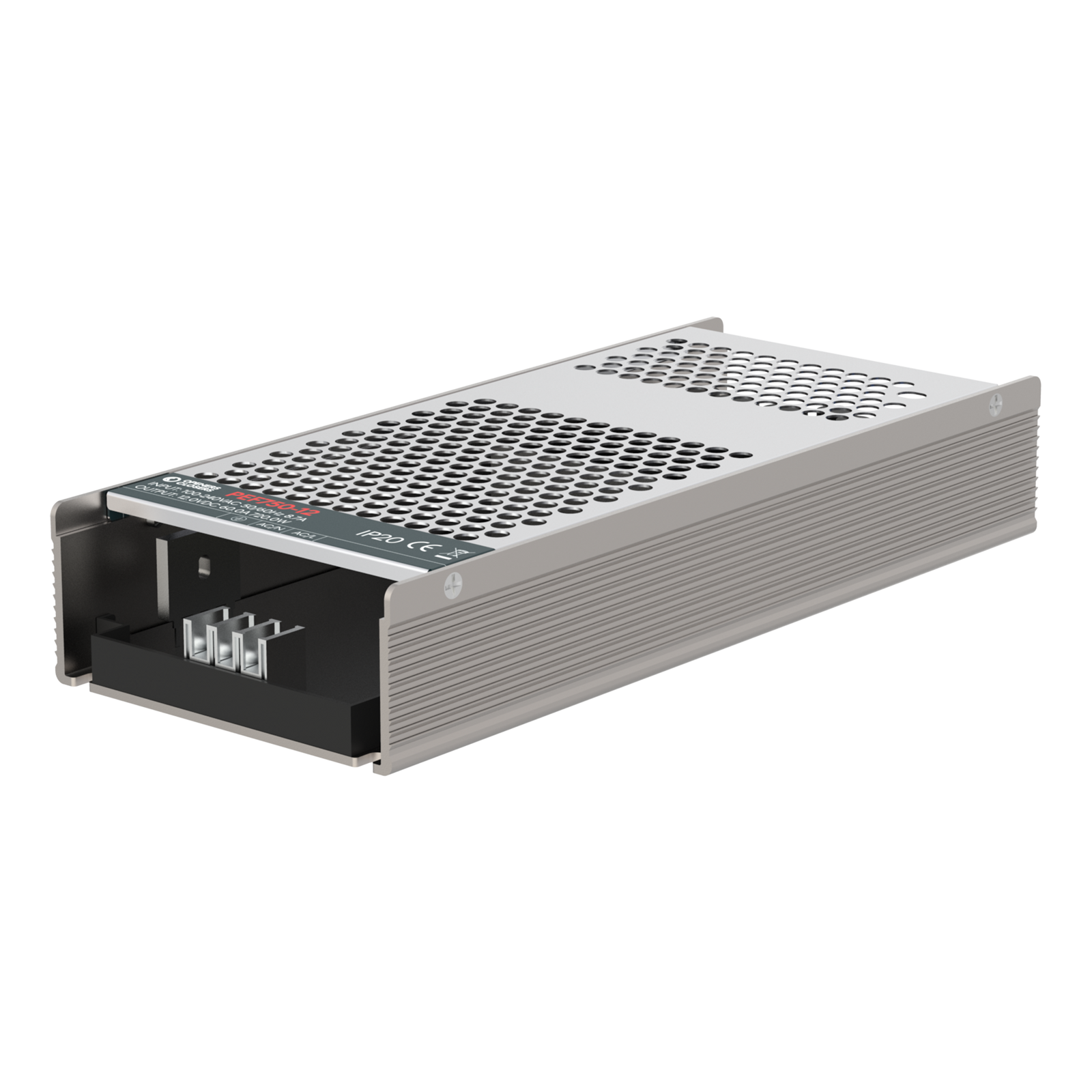

PEF750-1260000 Series PS Fanless PFC Enclosed Power Supply 720W with 12V DC 60A

Request Information
Download PDF

Technical Data

Installation TypeAluminum plate
Operating Temperature-30ºC - +70ºC
Operating Humidity Range20-90% RH
MTBF100.9K hrs min. MIL-HDBK-217F (25ºC)
EMC ImmunityBS EN/EN61000 -4-2,3,4,5,6,8,11, BS EN/EN55035
EMC EmissionBS EN/EN55032 (CISPR32) Class B, BS EN/EN61000 -3-2,-3
Safety StandardsBS EN/EN62368-1, EAC TP TC 004
Connection for auxiliary batteryNo
Height (Z)31 mm
Width (X)41 mm
Depth (Y)237 mm

Electrical Data (at 20°C)

Nominal Voltage12 V DC
Connection TypeWired
Rated Operational Voltage Tolerance±1.0%
Power720 W
Efficiency93.5%
Input Frequency Range47 - 63 Hz
Input Leakage Current<0.75 mA / 240 V AC
Input Voltage Range90 - 264 V AC / 127 - 370 V DC
Ripple and Noise150 mVp-p
Voltage adjustment range12 - 14.4 V
Current Intensity60 A
AC Current Intensity7.5 A / 115 V AC - 3.8 A / 230 V AC
Standard Insulation ResistanceI/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500 V DC / 25ºC / 70% RH
