PGX01

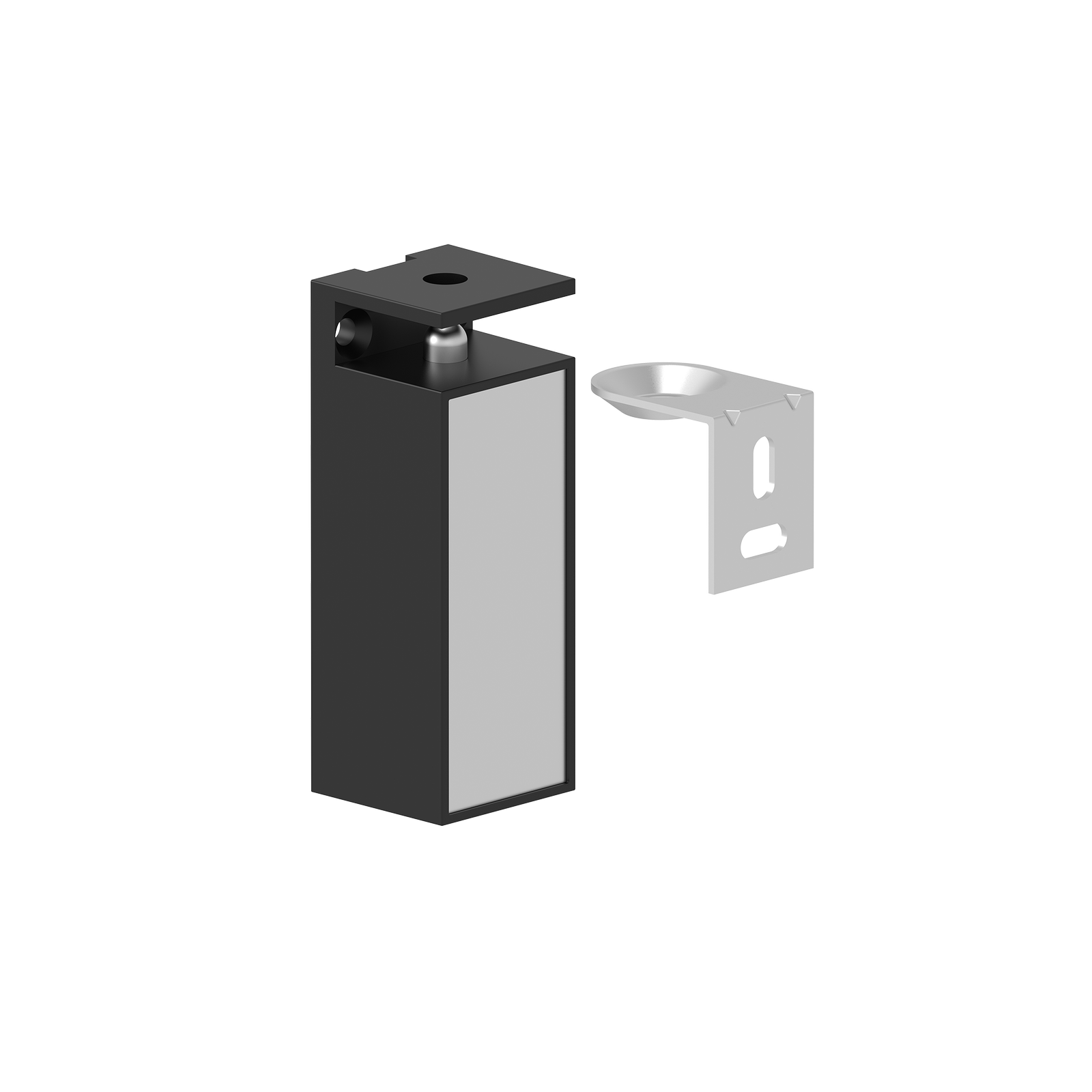

PGX01 Series PGX Electromechanical Lock 12V/24V DC Fail-Safe / Standard monitoring
EAN: 8431922251232
GTIN: 8431922251232 Series PGX
Technical Data
| Function | Fail-Safe / Standard monitoring |
| Installation Type | Surface Mounted |
| Door Status | No |
| Bolt Status | No |
| Measurements | Block | Counterplate |
| Height (Z) | 81.5 mm | 28 mm |
| Width (X) | 30 mm | 21.6 mm |
| Depth (Y) | 28 mm | 33 mm |
Electrical Data (at 20°C)
| Nominal Voltage | 12V/24V DC |
| Coil | W |
| Duty Cycle (%ED) | 100% ED |
| Connection Type | Wired |
| Rated Operational Voltage Tolerance | ± 10 % |
| Power | 3.6 W |
Connection
Consumption Relation between Tension (Vin) and Consumption (A)
Direct Current (DC)
| Vin (DC) |
| ||
|---|---|---|---|
| 12 | 0.3 | ||
| 24 | 0.15 |
1 C2: Holding Consumption.
