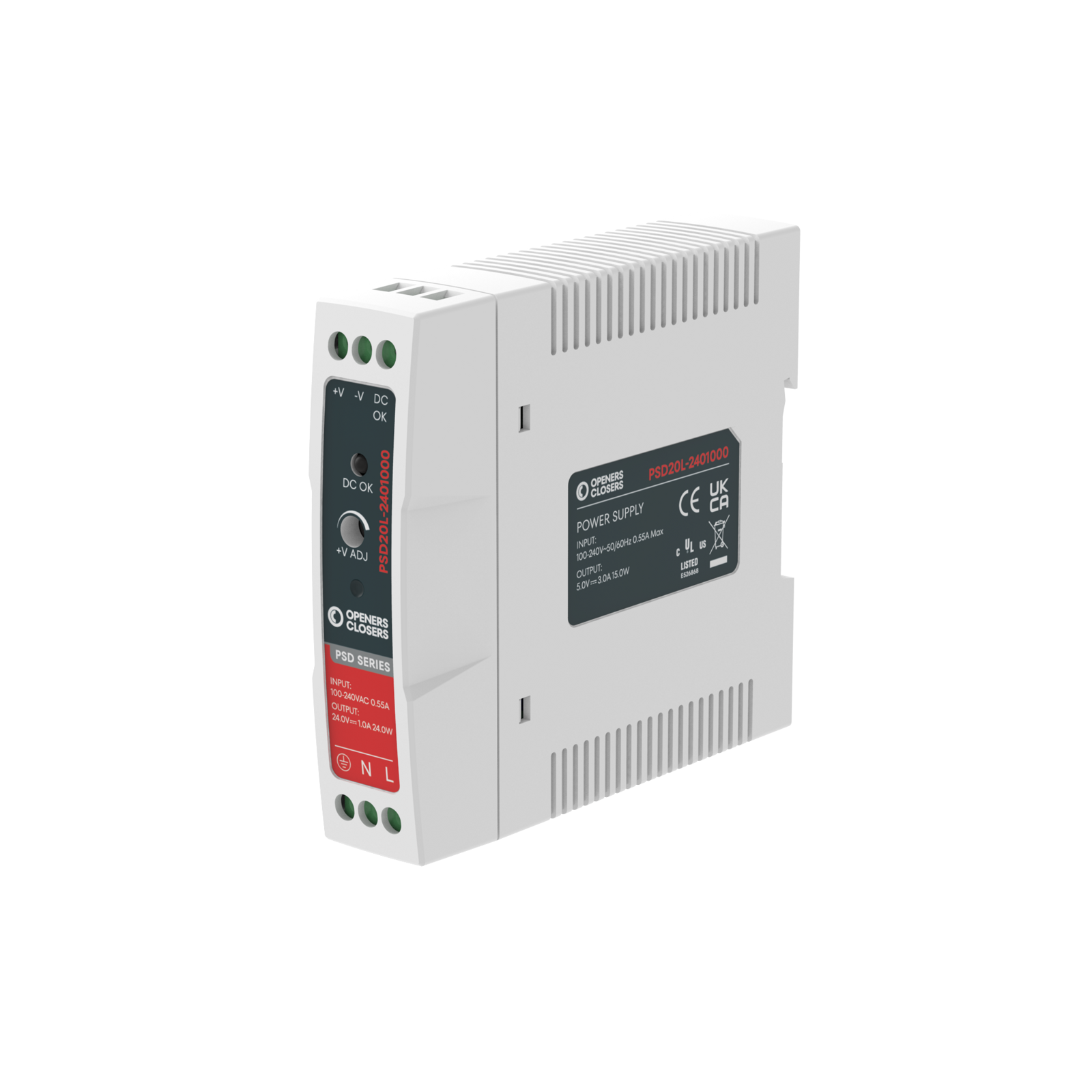

PSD020L-2401000 Series PS Slim-line DIN Rail Power Supply 24W with 24V DC 1A

Request Information
Download PDF

Technical Data

Installation TypeDIN Rail
Operating Temperature-20ºC - +70ºC
Operating Humidity Range20-90% RH
MTBF100K hrs min. MIL-HDBK-217F (25 ºC)
EMC ImmunityBS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11
EMC EmissionBS EN/EN55032 Class B, BS EN/EN IEC 61000-3-2, 3
Safety StandardsUL508, BS/EN62368-1
Connection for auxiliary batteryNo
Height (Z)92 mm
Width (X)23 mm
Depth (Y)100 mm

Electrical Data (at 20°C)

Nominal Voltage24 V DC
Connection TypeWired
Rated Operational Voltage Tolerance±2.0%
Power24 W
Efficiency84%
Input Frequency Range47 - 63 Hz
Input Leakage Current<1 mA / 240 V AC
Input Voltage Range90 - 264 V AC / 127 - 370 V DC
Ripple and Noise150 mVp-p
Current Intensity1 A
AC Current Intensity0.33 A / 115 V AC - 0.21 A / 230 V AC
Standard Insulation ResistanceI/P-O/P: 100M Ohms / 500 V DC / 25ºC / 70% RH
