Series PS
PSD030S-4800630

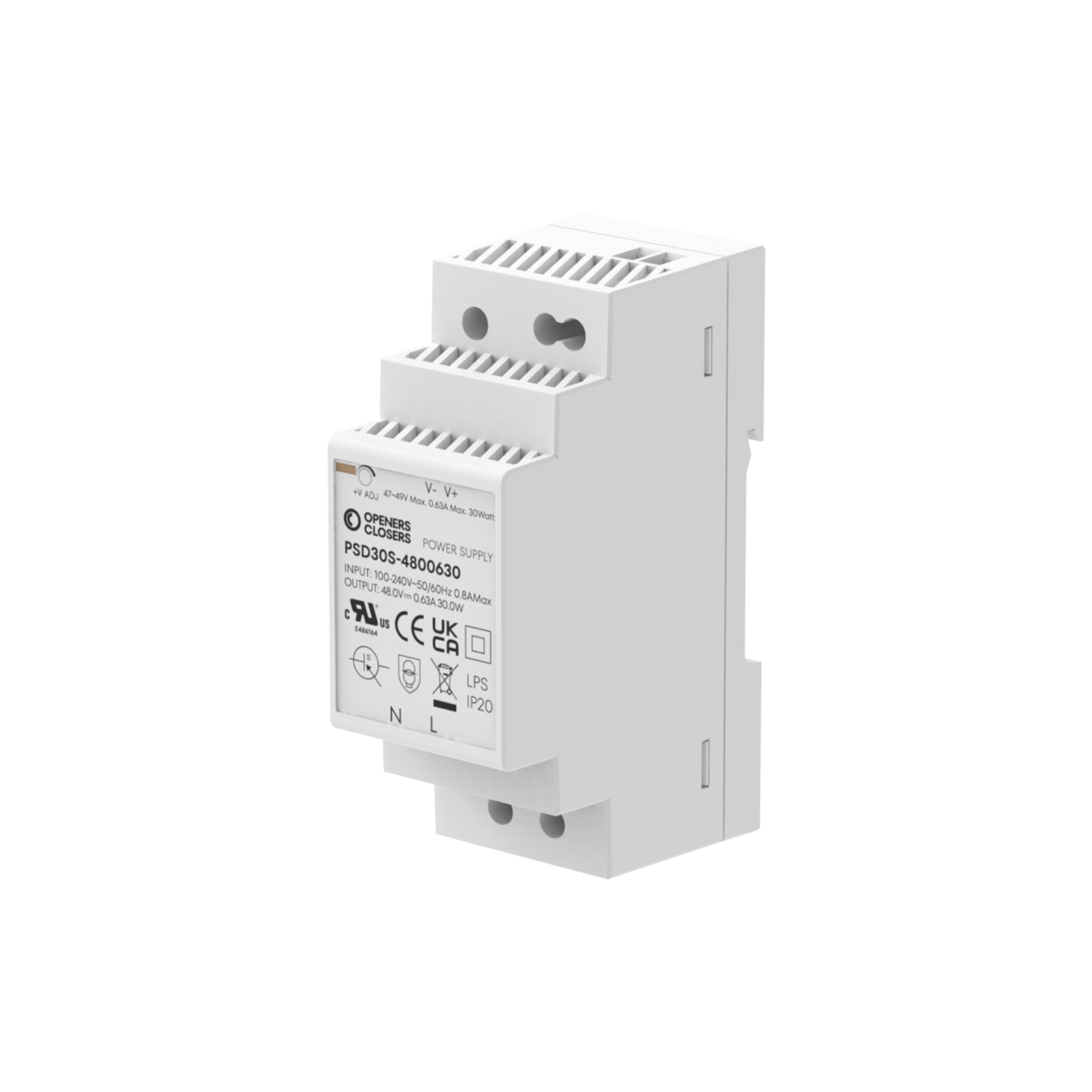

PSD030S-4800630 Series PS Step-Shaped DIN Rail Power Supply 30W with 48V DC 0.63A
Technical Data
| Installation Type | DIN Rail |
| Operating Temperature | -20ºC - +70ºC |
| Operating Humidity Range | 20-90% RH |
| MTBF | 900K hrs min. MIL-HDBK-217F (25 ºC) |
| EMC Immunity | BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11 |
| EMC Emission | BS EN/EN55032 Class B, BS EN/EN IEC 61000-3-2, 3 |
| Safety Standards | UL62368-1, BS EN/EN62368-1 |
| Connection for auxiliary battery | No |
| Height (Z) | 90 mm |
| Width (X) | 35 mm |
| Depth (Y) | 58 mm |
Electrical Data (at 20°C)
| Nominal Voltage | 48 V DC |
| Connection Type | Wired |
| Rated Operational Voltage Tolerance | ±2.0% |
| Power | 30 W |
| Efficiency | 90% |
| Input Frequency Range | 47 - 63 Hz |
| Input Voltage Range | 90 - 264 V AC / 127 - 370 V DC |
| Ripple and Noise | 240 mVp-p |
| Voltage adjustment range | 43.2 - 55.2 V |
| Current Intensity | 0.63 A |
| AC Current Intensity | 0.88 A / 115 V AC - 0.48 A / 230 V AC |
| Standard Insulation Resistance | I/P-O/P: 100M Ohms / 500 V DC / 25ºC / 70% RH |
