Series PS
PSD150S-4803120

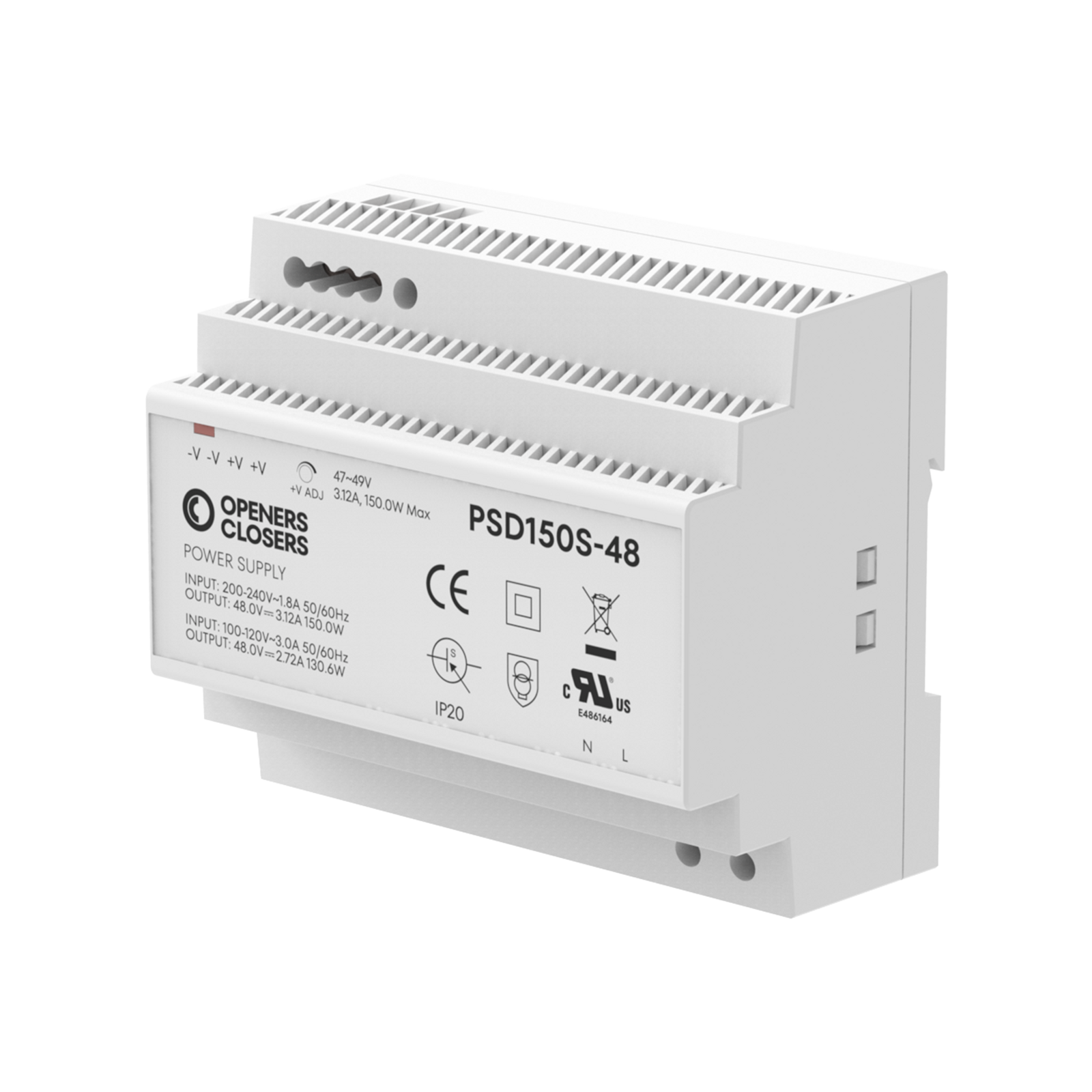

PSD150S-4803120 Series PS Step-Shaped 2 Channel DIN Rail Power Supply 153.6W (230V AC)/130.6W (115V AC) with 48V DC 3.12A
Technical Data
| Installation Type | DIN Rail |
| Operating Temperature | -20ºC - +70ºC |
| Operating Humidity Range | 20-90% RH |
| MTBF | 500K hrs min. MIL-HDBK-217F (25 ºC) |
| EMC Immunity | BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11 |
| EMC Emission | BS EN/EN55032 Class B, BS EN/EN IEC 61000-3-2, 3 |
| Safety Standards | BS EN/EN62368-1 |
| Connection for auxiliary battery | No |
| Height (Z) | 90 mm |
| Width (X) | 105 mm |
| Depth (Y) | 58 mm |
Electrical Data (at 20°C)
| Nominal Voltage | 48 V DC |
| Connection Type | Wired |
| Rated Operational Voltage Tolerance | ±2.0% |
| Power | 153.6 (230 V AC) / 130.6 (115 V AC) W |
| Efficiency | 90.5% |
| Input Frequency Range | 47 - 63 Hz |
| Input Voltage Range | 90 - 264 V AC / 127 - 370 V DC |
| Ripple and Noise | 200 mVp-p |
| Voltage adjustment range | 43.2 - 55.2 V |
| Current Intensity Channel 1 | 3.12 A |
| Current Intensity Channel 2 | 2.72 A |
| AC Current Intensity | 3 A / 115 V AC - 1.6 A / 230 V AC |
| Standard Insulation Resistance | I/P-O/P: 100M Ohms / 500 V DC / 25ºC / 70% RH |
