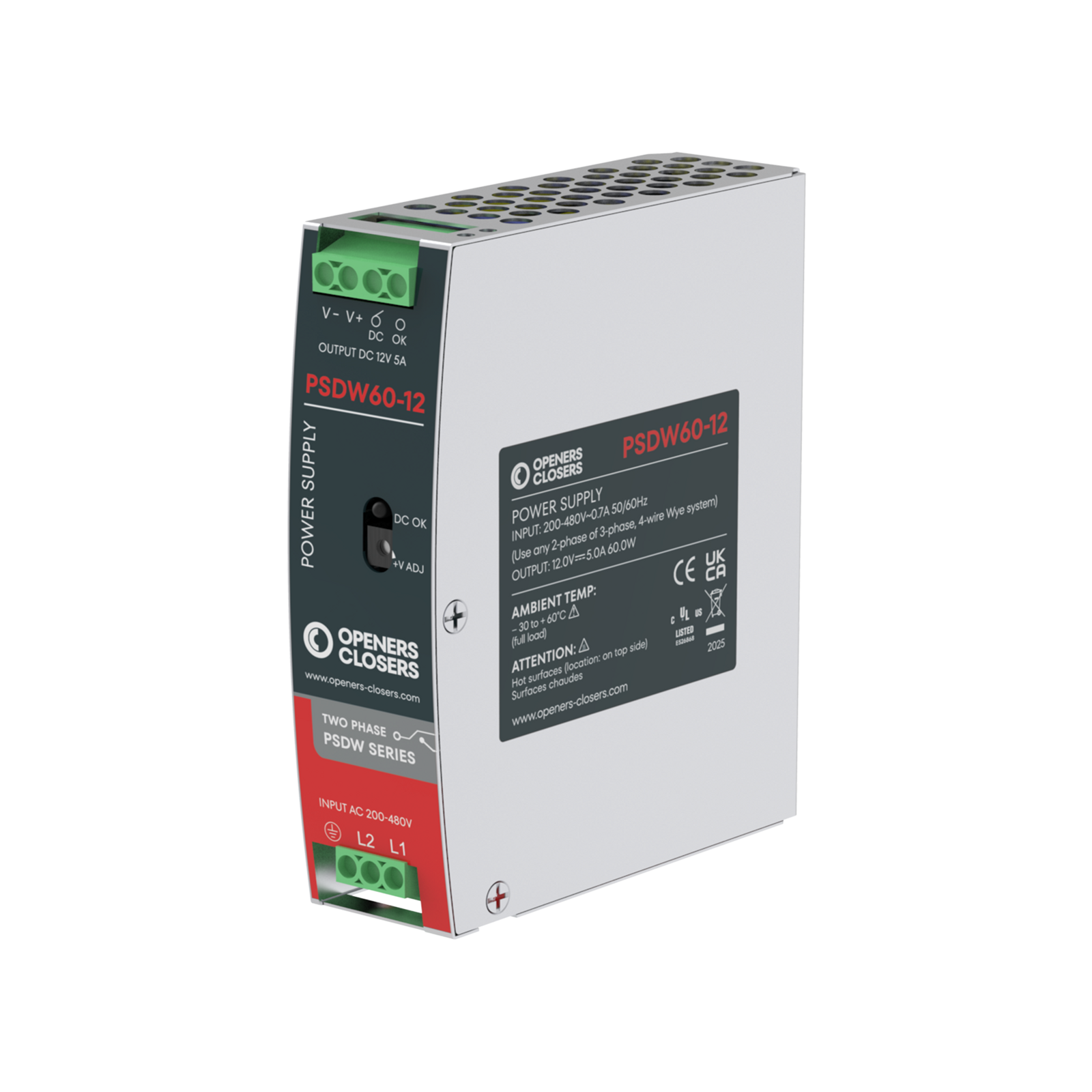

PSDW060-1205000 Series PS Wide Input Voltage DIN Rail Power Supply 60W with 12V DC 5A

Request Information
Download PDF

Technical Data

Installation TypeDIN Rail
Operating Temperature-30ºC - +85ºC
Operating Humidity Range20-90% RH
MTBF1600K hrs min. Telcordia SR-332 (Bellcore)
EMC ImmunityBS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11
EMC EmissionBS EN/EN55032 Class B, BS EN/EN IEC 61000-3-2, 3
Safety StandardsUL61010-1, UL61010-2-201, BS EN/EN62368-1
Connection for auxiliary batteryNo
Height (Z)125 mm
Width (X)32 mm
Depth (Y)114.5 mm

Electrical Data (at 20°C)

Nominal Voltage12 V DC
Connection TypeWired
Rated Operational Voltage Tolerance±2.0%
Power60 W
Efficiency86.5%
Input Frequency Range47 - 63 Hz
Input Leakage Current<2 mA / 530 V AC
Input Voltage Range180 - 550 V AC / 254 - 780 V DC
Ripple and Noise120 mVp-p
Voltage adjustment range12 - 15 V
Current Intensity5 A
AC Current Intensity0.4 A / 400 V AC - 0.7 A / 230 V AC
Standard Insulation ResistanceI/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500 V DC / 25ºC / 70% RH
