Series PS
PSDW060-4801250

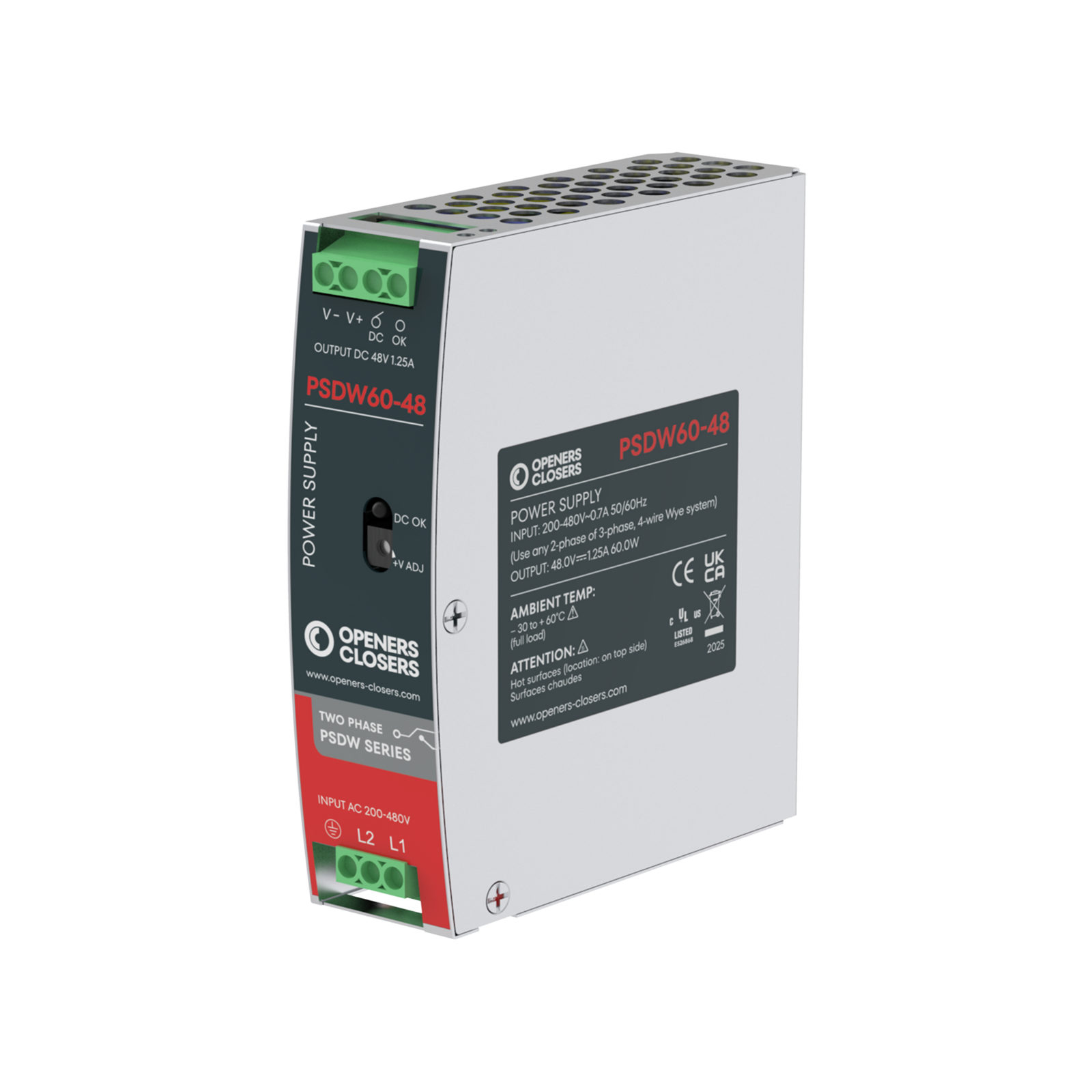

PSDW060-4801250 Series PS Wide Input Voltage DIN Rail Power Supply 60W with 48V DC 1.25A
Technical Data
| Installation Type | DIN Rail |
| Operating Temperature | -30ºC - +85ºC |
| Operating Humidity Range | 20-90% RH |
| MTBF | 1600K hrs min. Telcordia SR-332 (Bellcore) |
| EMC Immunity | BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11 |
| EMC Emission | BS EN/EN55032 Class B, BS EN/EN IEC 61000-3-2, 3 |
| Safety Standards | UL61010-1, UL61010-2-201, BS EN/EN62368-1 |
| Connection for auxiliary battery | No |
| Height (Z) | 125 mm |
| Width (X) | 32 mm |
| Depth (Y) | 114.5 mm |
Electrical Data (at 20°C)
| Nominal Voltage | 48 V DC |
| Connection Type | Wired |
| Rated Operational Voltage Tolerance | ±2.0% |
| Power | 60 W |
| Efficiency | 90.5% |
| Input Frequency Range | 47 - 63 Hz |
| Input Leakage Current | <2 mA / 530 V AC |
| Input Voltage Range | 180 - 550 V AC / 254 - 780 V DC |
| Ripple and Noise | 200 mVp-p |
| Voltage adjustment range | 48 - 57 V |
| Current Intensity | 1.25 A |
| AC Current Intensity | 0.4 A / 400 V AC - 0.7 A / 230 V AC |
| Standard Insulation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500 V DC / 25ºC / 70% RH |
