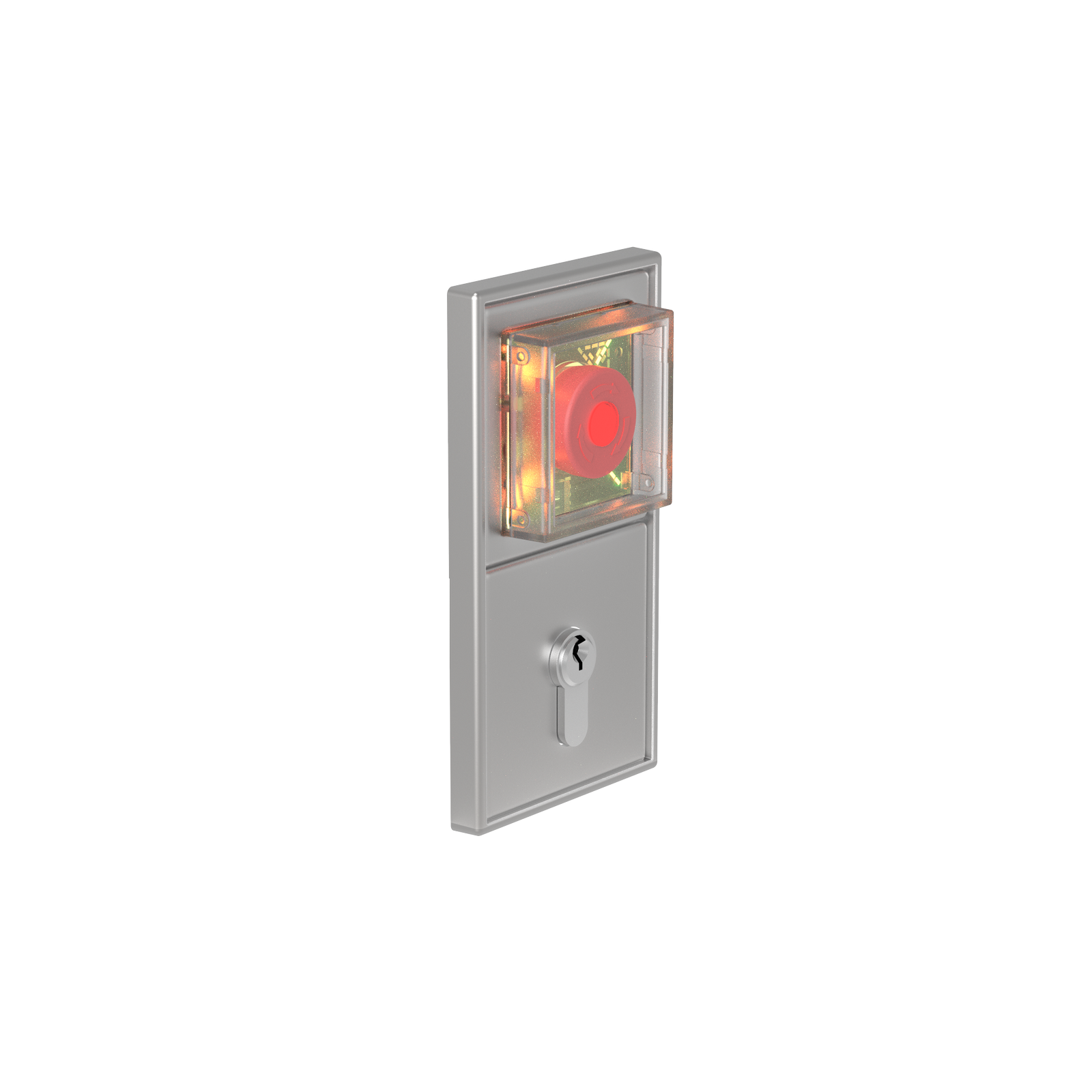

TE1A011 Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Button + PZ88 Cylinder) Recess Mounted 24V DC
TE1A011 Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Button + PZ88 Cylinder) Recess Mounted 24V DC

TE1A011

TE1A011 Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Button + PZ88 Cylinder) Recess Mounted 24V DC

Request Information
Download PDF

Technical Data

Installation TypeRecess Mounted
Principal MaterialStainless Steel
Emergency ButtonStandard
Manual controlNormal cover with cylinder
LEDNo
CylinderPZ88 (31 mm)
Max. interconnected terminals60
PictogramYes
Operating Temperature-20ºC − +55ºC
IP ClassificationIP20
Power Supply UnitNo
Max. cable length20 m
Height (Z)150 mm
Width (X)79 mm
Depth (Y)10 mm
Equivalent productsFTNT20

Product Certificates

StandardsEN 13637

Compatible Products

TEV2L, TEV2Z, TEV5L, TEV5Z

Electrical Data (at 20°C)

Nominal Voltage24V DC
Power supply voltage24V DC
Controller protection0.3 A Polyfuse
Output protection1 A Polyfuse
Relay Contact1 A with DC 30 V
