TE1A015

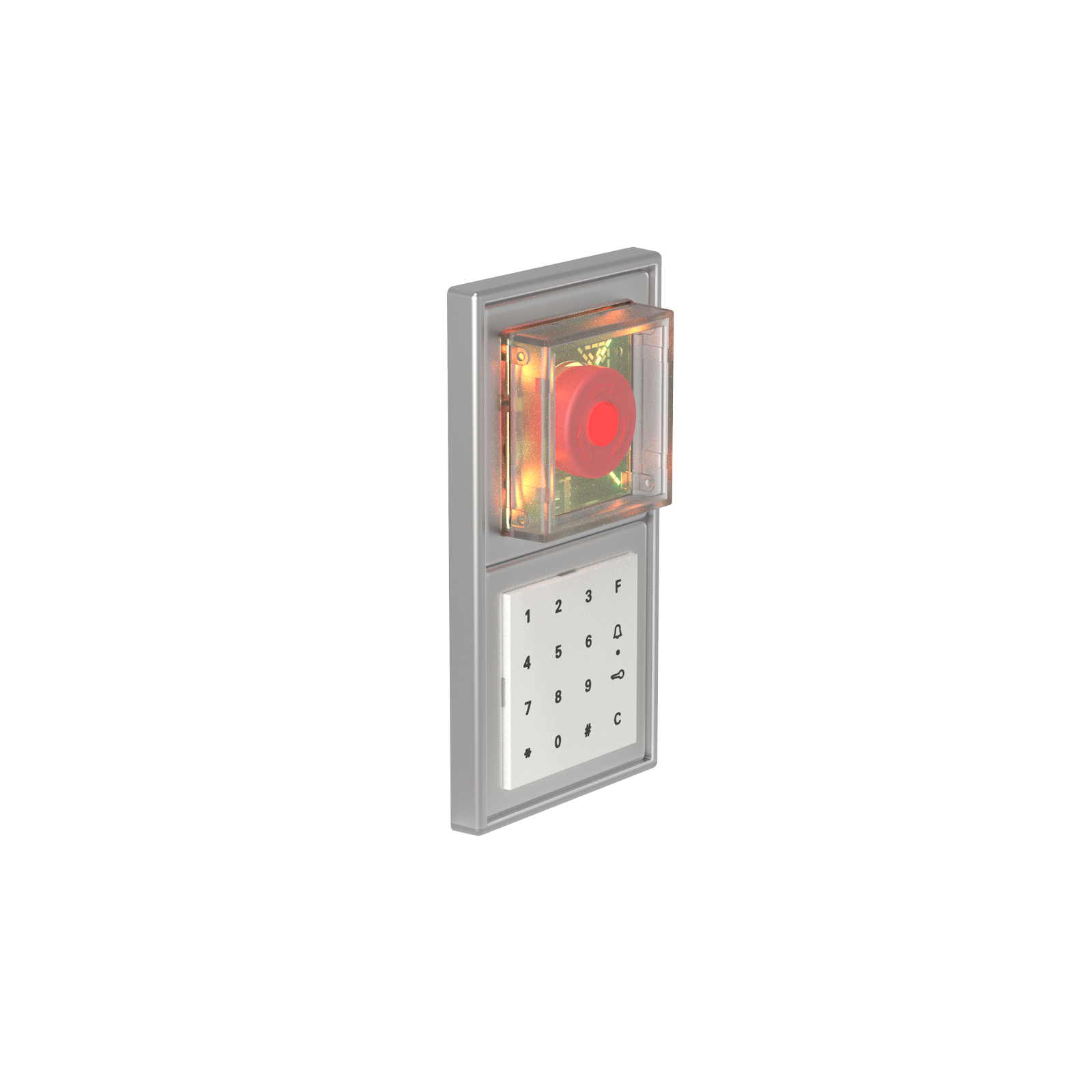

TE1A015 Series TE Emergency Exit Terminal Recess Mounted 2 Modules (Button + Coded Keypad) 24V DC
Series TE
Technical Data
| Installation Type | Recess Mounted |
| Principal Material | Stainless Steel |
| Emergency Button | Standard |
| Manual control | Encoded keyboard |
| LED | No |
| Max. interconnected terminals | 60 |
| Pictogram | Yes |
| Operating Temperature | -20ºC − +55ºC |
| IP Classification | IP20 |
| Power Supply Unit | No |
| Max. cable length | 20 m |
| Height (Z) | 150 mm |
| Width (X) | 79 mm |
| Depth (Y) | 10 mm |
Product Certificates
| Standards | EN 13637 |
Electrical Data (at 20°C)
| Nominal Voltage | 24V DC |
| Power supply voltage | 24V DC |
| Controller protection | 0.3 A Polyfuse |
| Output protection | 1 A Polyfuse |
| Relay Contact | 1 A with DC 30 V |
