TE1B011

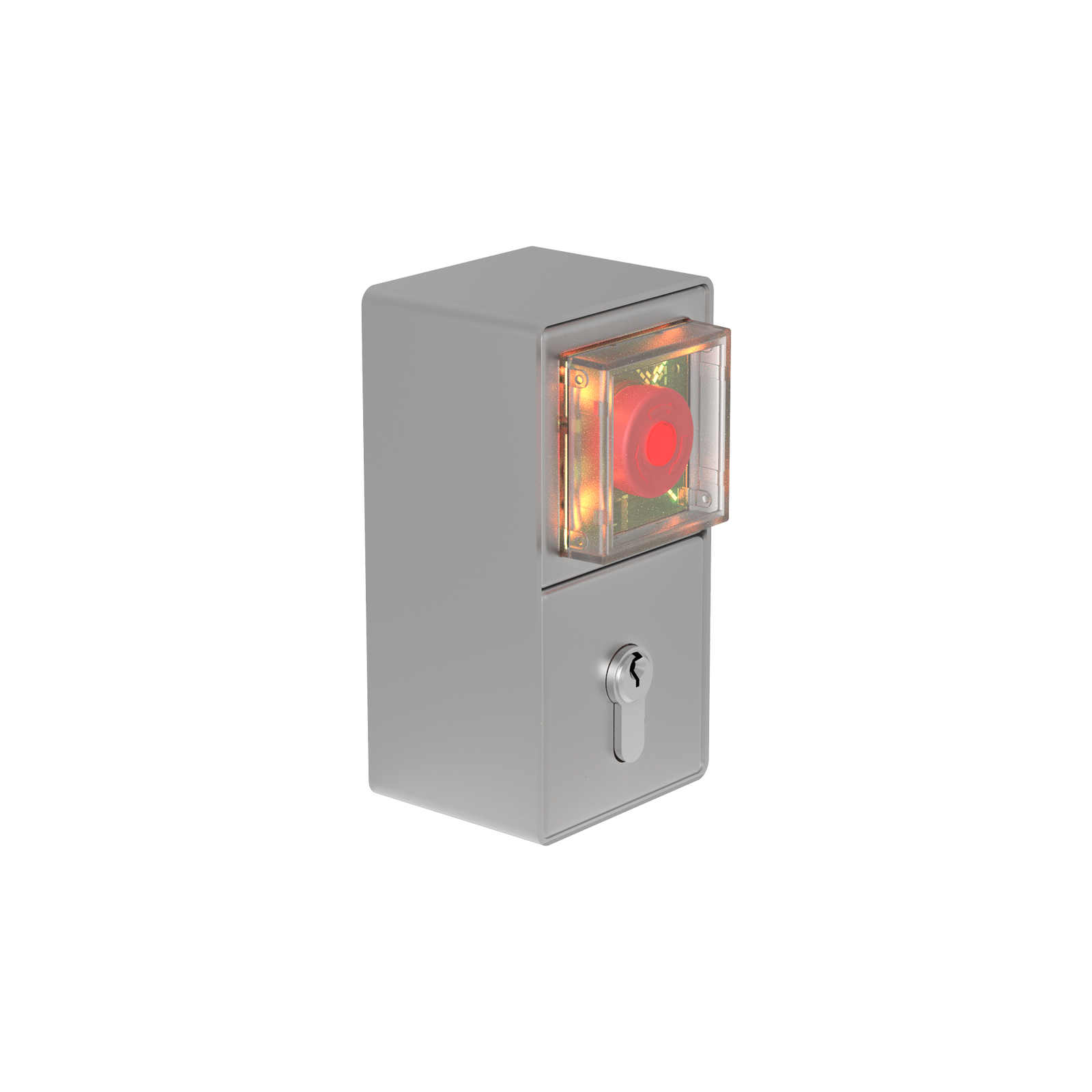

TE1B011 Series TE Emergency Exit Terminal Surface Mounted 2 Modules (Button + PZ88 Cylinder) 24V DC
EAN: 8431922528068
GTIN: 8431922528068 Series TE
Technical Data
| Installation Type | Surface Mounted |
| Principal Material | Stainless Steel |
| Emergency Button | Standard |
| Manual control | Normal cover with cylinder |
| LED | No |
| Cylinder | PZ88 (31 mm) |
| Max. interconnected terminals | 60 |
| Pictogram | Yes |
| Operating Temperature | -20ºC − +55ºC |
| IP Classification | IP20 |
| Power Supply Unit | No |
| Max. cable length | 20 m |
| Height (Z) | 146 mm |
| Width (X) | 75 mm |
| Depth (Y) | 62 mm |
| Equivalent products | FTNT20 |
Product Certificates
| Standards | EN 13637 |
Electrical Data (at 20°C)
| Nominal Voltage | 24V DC |
| Operating current | 0.11 A |
| Power supply voltage | 24V DC |
| Controller protection | 0.3 A Polyfuse |
| Output protection | 1 A Polyfuse |
| Relay Contact | 1 A with DC 30 V |
