TL2

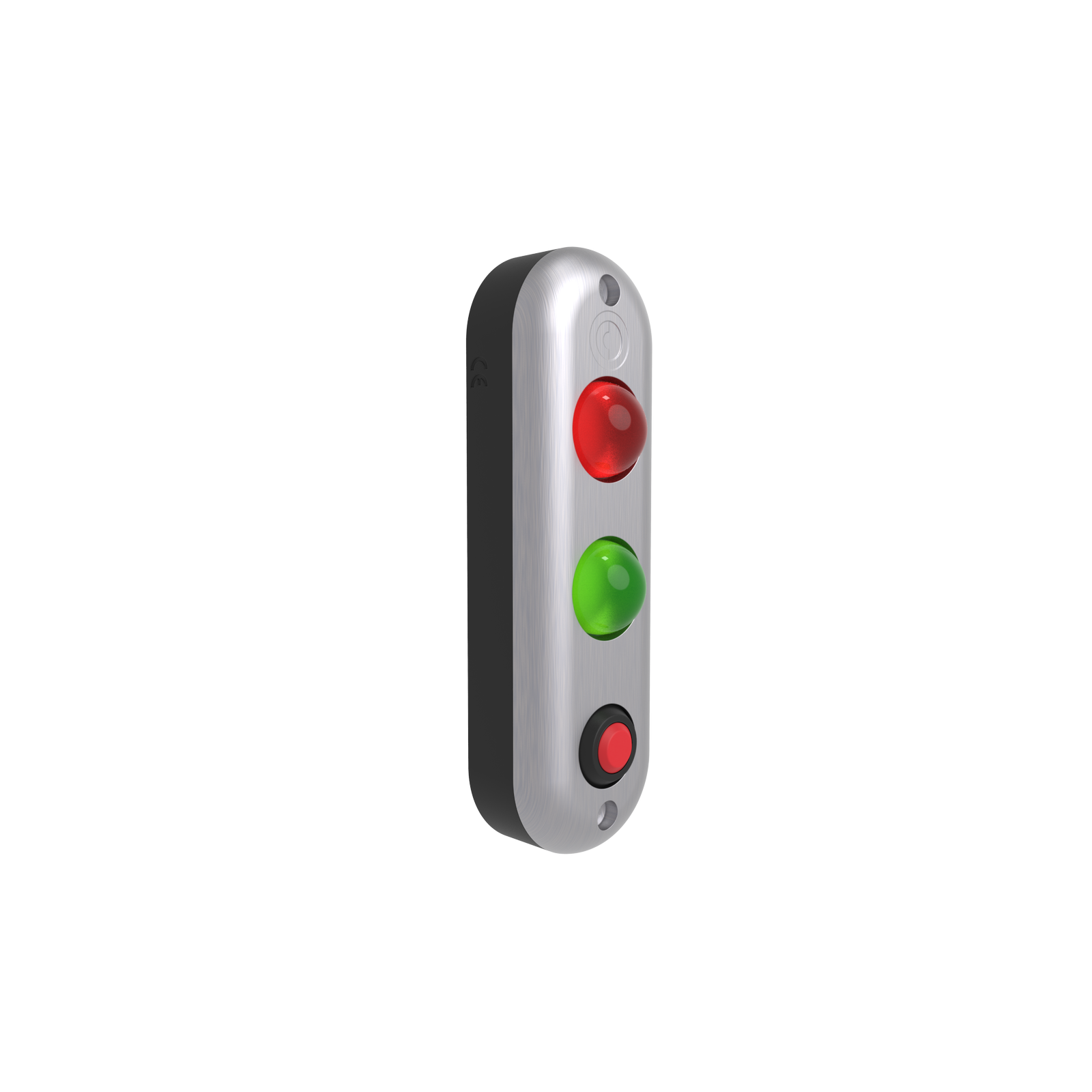

TL2 Series TL Indicator Light 180° with button 10-24V AC/DC
EAN: 3701207307349
GTIN: 3701207307349 Series TL
Technical Data
| Installation Type | Surface Mounted |
| Principal Material | PC enclosure + Aluminium alloy |
| Colour | Aluminium |
| LED Type | Red / Green |
| Intermittent Time | 150 |
| Height (Z) | 129.5 mm |
| Width (X) | 40 mm |
| Depth (Y) | 22 mm |
Electrical Data (at 20°C)
| Nominal Voltage | 10V-24V DC / 10V-18V AC |
| Connection Type | Power strip |
Connection
Consumption Relation between Tension (Vin) and Consumption (A)
Alternating Current (AC)
| Vin (AC) |
|
| ||||
|---|---|---|---|---|---|---|
| 12 |
| 0.01 | ||||
| 24 |
| — |
Direct Current (DC)
| Vin (DC) |
|
| ||||
|---|---|---|---|---|---|---|
| 12 |
| 0.01 | ||||
| 24 |
| 0.01 |
1 C1: Initial Consumption. 2 C2: Holding Consumption.
