TP1K

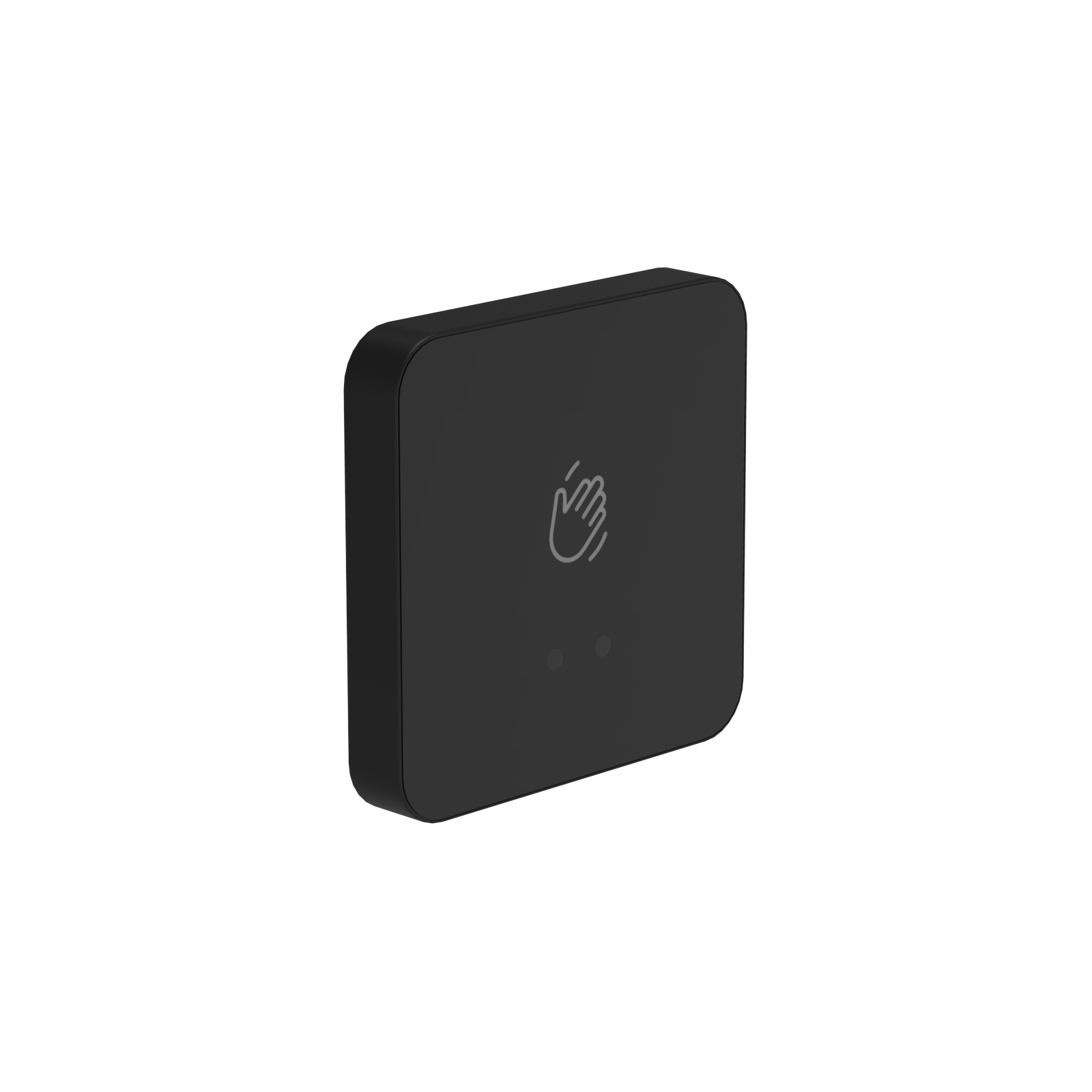

TP1K Series TP Proximity Sensor Button surface mounted 12/24V DC Black
EAN: 8431922114384
GTIN: 8431922114384 Series TP
Technical Data
| Installation Type | Surface Mounted |
| Principal Material | PC enclosure + ABS front panel |
| Colour | Black |
| Reading Distance | 3-15 cm |
| Timer Delay | 0-30s |
| LED | Yes |
| LED Type | Blue (Standby) / Green (Active) |
| Endurance Rating (Cycles) | 500,000 |
| Operating Temperature | -20ºC − +55ºC |
| Height (Z) | 86 mm |
| Width (X) | 86 mm |
| Depth (Y) | 14 mm |
Electrical Data (at 20°C)
| Nominal Voltage | 12/24V DC |
| Duty Cycle (%ED) | 100% ED |
| Connection Type | Wired |
Connection
Consumption Relation between Tension (Vin) and Consumption (A)
Direct Current (DC)
| Vin (DC) |
|
| ||||
|---|---|---|---|---|---|---|
| 12 |
| 0.02 | ||||
| 24 |
| 0.02 |
1 C1: Initial Consumption. 2 C2: Holding Consumption.
