TP3X

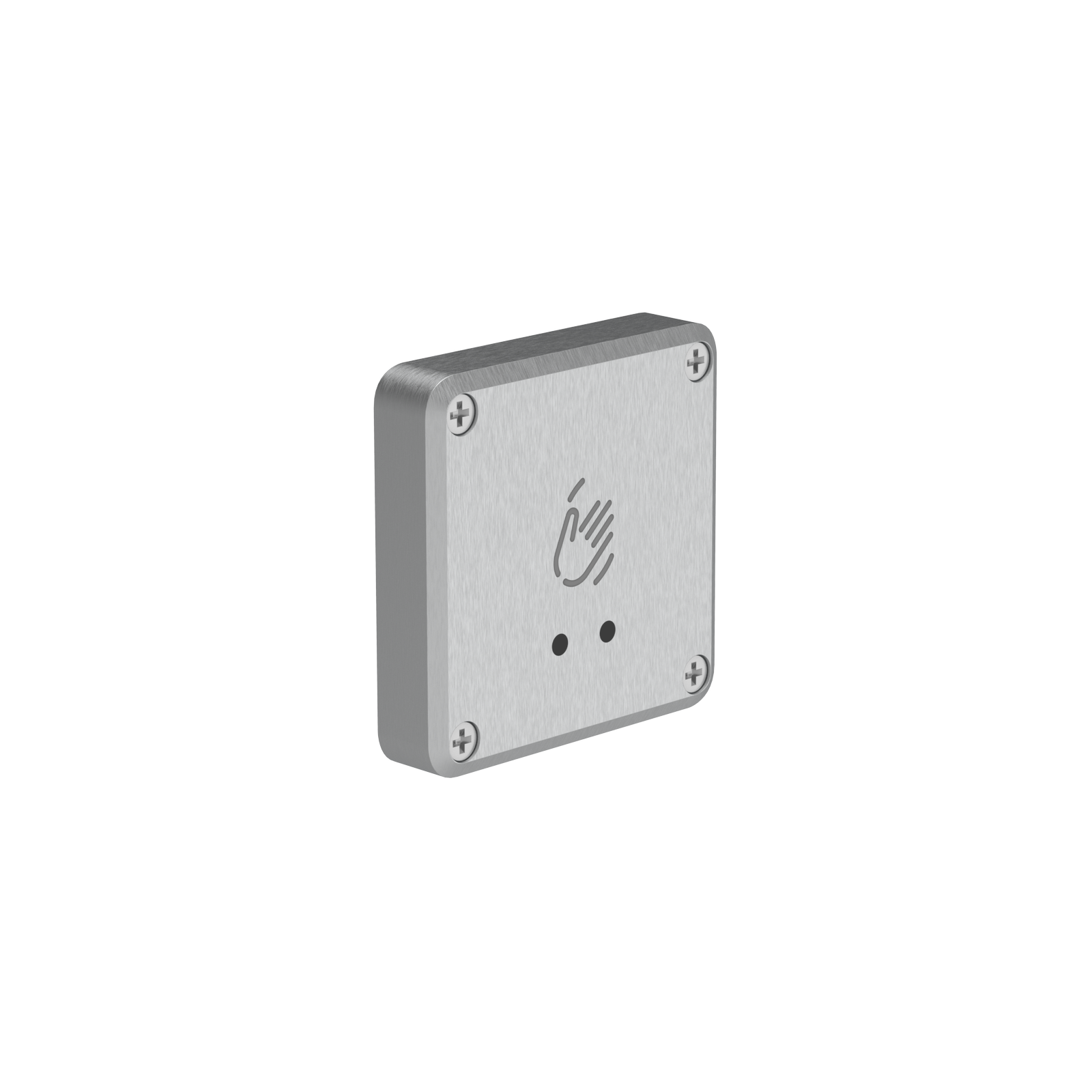

TP3X Series TP Proximity Sensor Button surface mounted 12/24V DC Waterproof IP68 Inox
EAN: 8431922114421
GTIN: 8431922114421 Series TP
Technical Data
| Installation Type | Surface Mounted |
| Colour | Inox |
| Reading Distance | 5-20 cm |
| Timer Delay | 0-30s |
| LED | Yes |
| LED Type | Blue (Standby) / Green (Active) |
| Endurance Rating (Cycles) | 500,000 |
| Operating Temperature | -20ºC − +55ºC |
| IP Classification | IP68 |
| Operating Humidity Range | 0–95% RH |
| Suitable for Outdoor Installation | IP68 |
| Height (Z) | 72.5 mm |
| Width (X) | 72.5 mm |
| Depth (Y) | 15 mm |
Electrical Data (at 20°C)
| Nominal Voltage | 12/24V DC |
| Duty Cycle (%ED) | 100% ED |
| Connection Type | Wired |
Connection
Consumption Relation between Tension (Vin) and Consumption (A)
Direct Current (DC)
| Vin (DC) |
|
| ||||
|---|---|---|---|---|---|---|
| 12 |
| 0.02 | ||||
| 24 |
| 0.02 |
1 C1: Initial Consumption. 2 C2: Holding Consumption.
