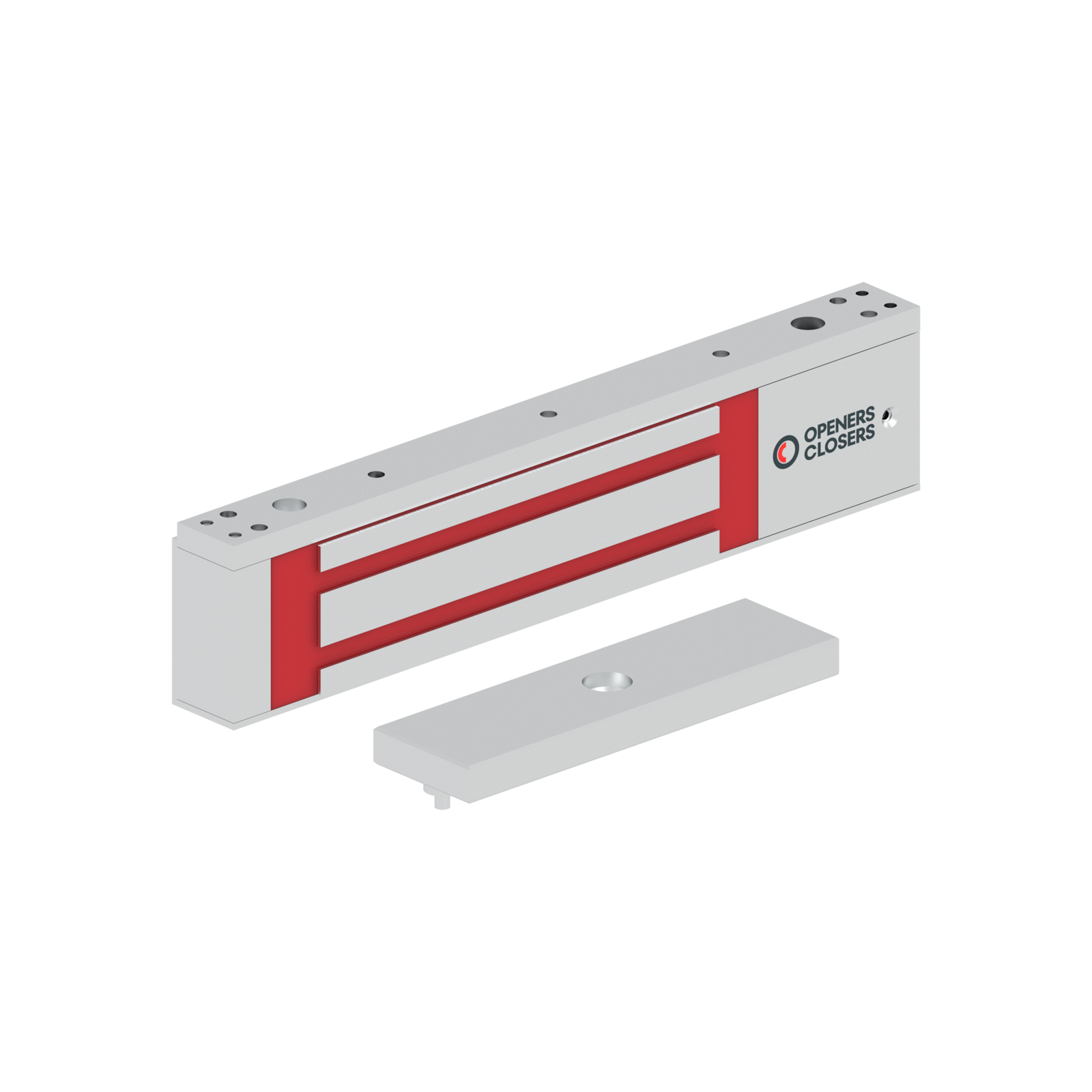

MEX280SV3 Electromagnetic Lock surface mounted 2,800N 12-48V DC with door status LED and timer

MEX280SV3

MEX280SV3 Series M Electromagnetic Lock surface mounted 2,800N 12-48V DC with door status LED and timer

Request Information
Download PDF

Technical Data

Closing Force2,800 N
Installation TypeSurface Mounted
ColourInox
Timer Delay0s/5s/10s/20s
Timer Delay (Factory)5s
Closing Timer DelayYes
Opening Timer DelayNo
LEDYes
Door StatusYes
MeasurementsBlockCounterplate
Height (Z)241 mm156 mm
Width (X)52 mm45 mm
Depth (Y)27 mm13 mm

Product Certificates

Regulations(UE) 305/2011
RoHS Directive2011/65/UE
REACH Regulation1907/2006

Compatible Products

MEXL2, MEXU3, MEXZ3, MF1

Electrical Data (at 20°C)

Nominal Voltage12-48V DC
CoilV
Duty Cycle (%ED)100% ED
Connection TypeConnector
Rated Operational Voltage Tolerance+/- 20%
Power3.25 W

Connection

Connection MEX280SV3 Electromagnetic Lock

Consumption Relation between Tension (Vin) and Consumption (A)

Direct Current (DC)

Vin (DC)

Initial

C1(A)1

Holding

C2(A)2
120.270.27
240.180.18
480.140.14
1 C1: Initial Consumption. 2 C2: Holding Consumption.
