P01A

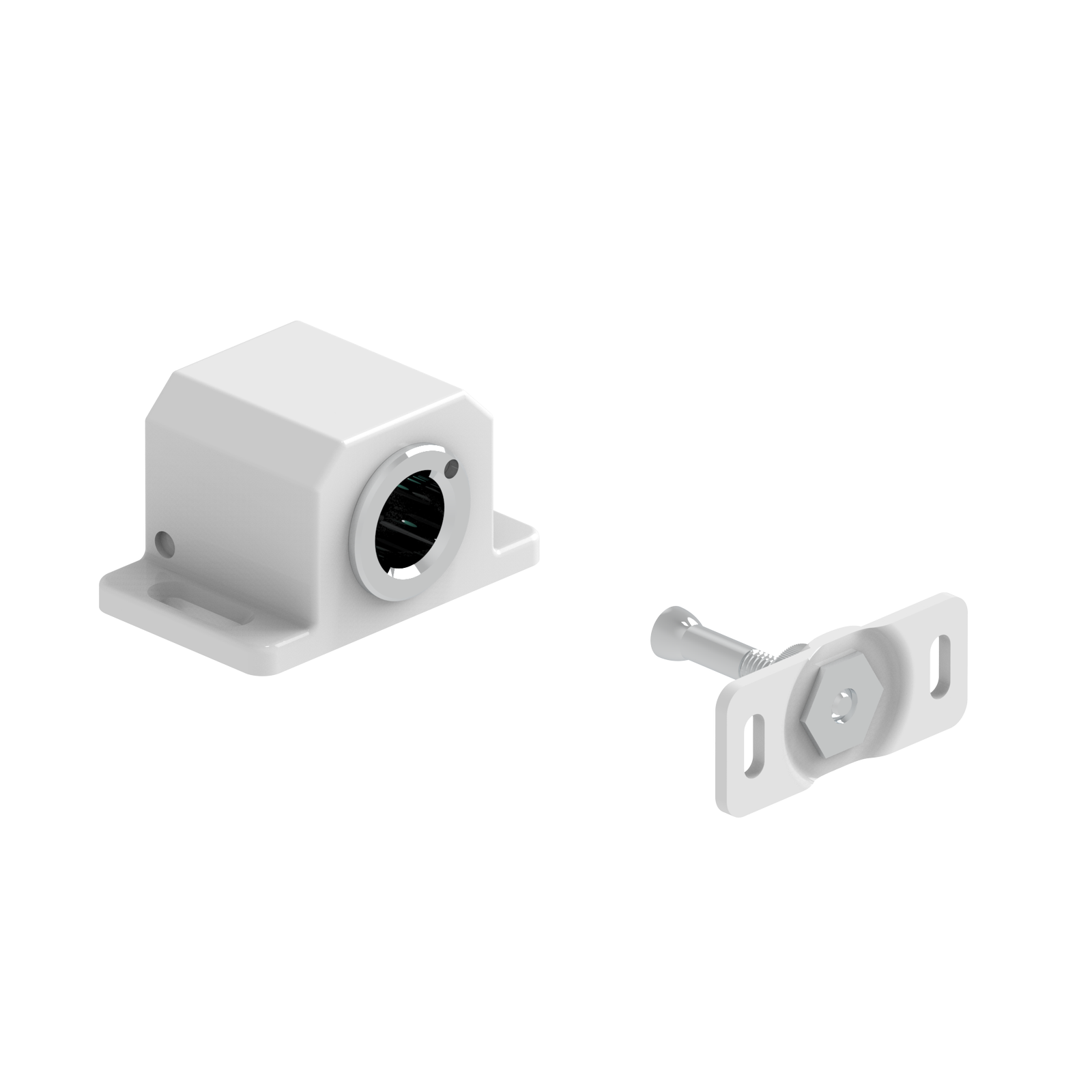

P01A Series PGX Electromechanical Lock Standard 12V DC
Technical Data
| Function | Fail-Secure |
| Installation Type | Surface Mounted |
| Door Status | No |
| Bolt Status | No |
| Measurements | Block | Counterplate |
| Height (Z) | 27.4 mm | 17.5 mm |
| Width (X) | 49.65 mm | 41.6 mm |
| Depth (Y) | 30.2 mm | 30.5 mm |
Electrical Data (at 20°C)
| Nominal Voltage | 12V DC |
| Coil | E |
| Duty Cycle (%ED) | 100% ED |
| Connection Type | Wired |
| Rated Operational Voltage Tolerance | ± 10 % |
| Power | 1.37 W |
Consumption Relation between Tension (Vin) and Consumption (A)
Direct Current (DC)
| Vin (DC) |
| ||
|---|---|---|---|
| 12 | 0.11 | ||
| 24 | — |
1 C2: Holding Consumption.
