PSC012R2401000

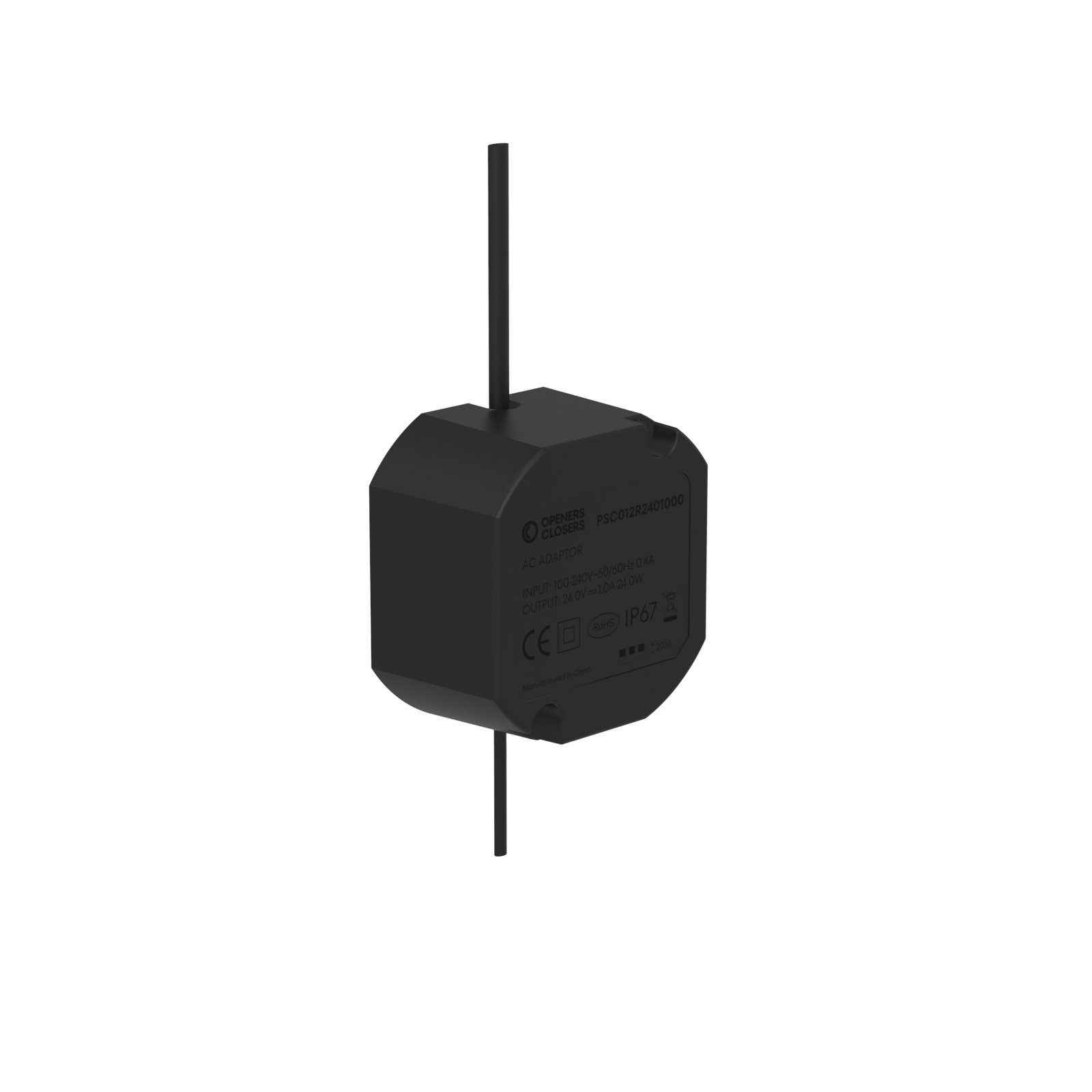

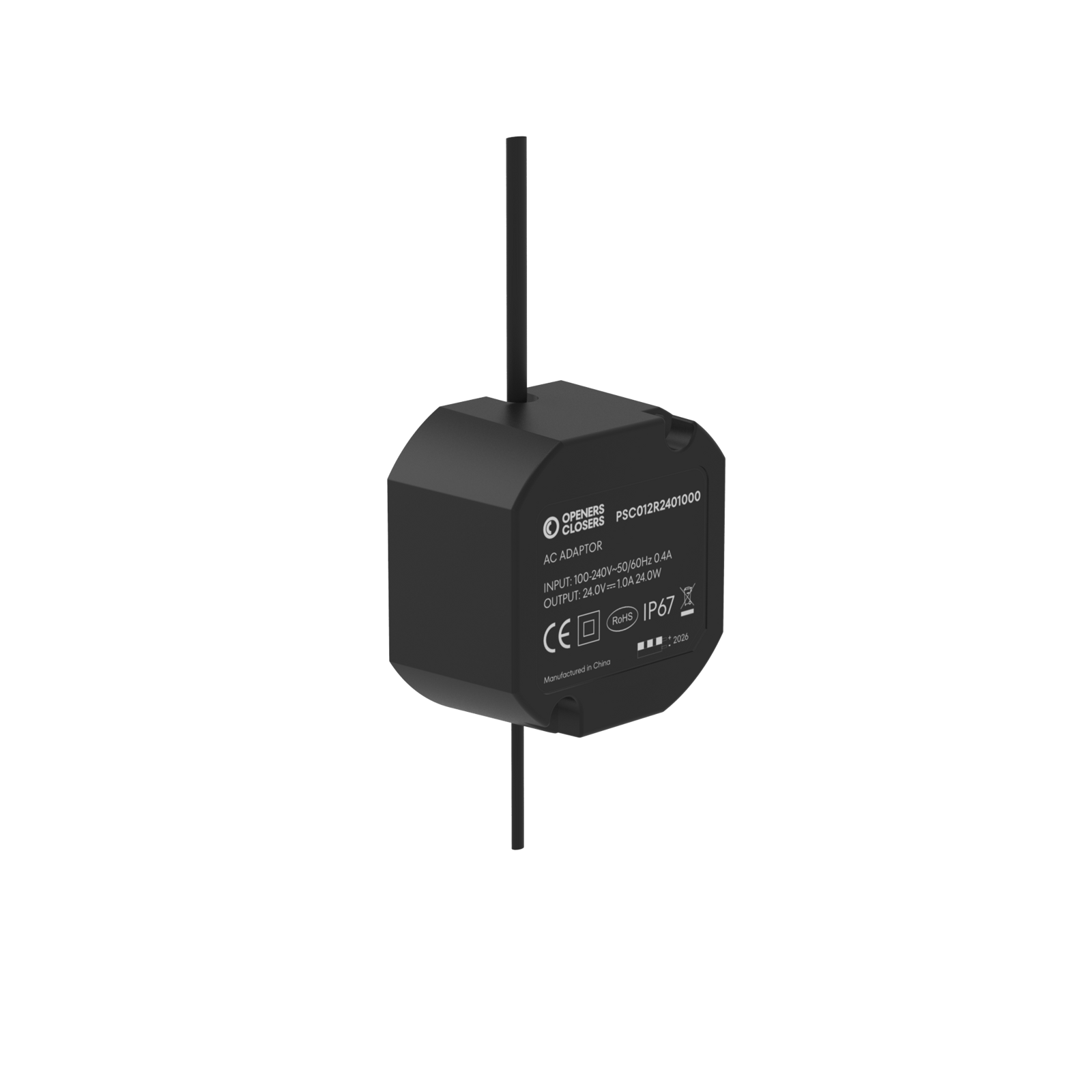

PSC012R2401000 Series PS Waterproof Power Supply IP67 24W with 24V DC 1A
Technical Data
| Installation Type | Screw Mount |
| Operating Temperature | -20ºC - +70ºC |
| IP Classification | IP67 |
| Operating Humidity Range | 20-95% RH |
| MTBF | 584,6K hrs min. MIL-HDBK-217F |
| EMC Immunity | BS EN/EN61000 -4-2,3,4,5,6,8,11, BS EN/EN55035 |
| EMC Emission | BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000 -3-2 |
| Safety Standards | UL62368-1, TUV BS EN/EN62368 -1, EAC TP TC 004, AS/NZS 60950.1 |
| Connection for auxiliary battery | No |
| Height (Z) | 25 mm |
| Width (X) | 49 mm |
| Depth (Y) | 50,5 mm |
Electrical Data (at 20°C)
| Nominal Voltage | 24 V DC |
| Connection Type | Wired |
| Rated Operational Voltage Tolerance | ±1.0% |
| Power | 24 W |
| Efficiency | 87% |
| Input Frequency Range | 50 - 60 Hz |
| Input Voltage Range | 85 / 265 V AC |
| Ripple and Noise | 200 mVp-p |
| Voltage adjustment range | 22,8 - 25,2 V |
| Current Intensity | 1 A |
| AC Current Intensity | 1 A / 230 V AC |
| Standard Insulation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500 V DC / 25ºC / 70% RH |
